Medical examination furniture

Examination couches

Examination couch width 700mm, hand remote

OVALIA V2 range
Ref. : OV2-12-125

Discover this mixed 3 sections examination couch with a width of 70cm. Its double backrest's system associated with a pair of stirrups and stainless steel drawer gives the couch a great versatility to be used both for gynaecology and general examination. Supplied with a stretched upholstery of 5cm thickness, M1 fire retardant class. The head rest is adjustable with a gas jack controlled by a bilateral manual handle whereas the middle backrest is electric. Its electric height adjustment allows you to use it from 48 to 88 cm thanks to a multifunction hand remote. With the 4 wheels with brakes diameter 125mm, you can move the couch as you want. The emergency position can be reached easily thanks to the Trendelenburg and Anti Tredelenburg features. There are 2 paper roll holders on the couch, one behind the head rest and one under the middle backrest. To have a quick and easy cleaning, all our exam couches from the OV2 range are delivered with a shapped base in light grey colour ( RAL 7035).

Upholstery colours

Standard colours
Optional colours
Base colours

Standard colours
Optional colours
Where to find this product ?
Examination couch width 700mm, hand remote
CE
Fabrication française
French made
Examination couch width 700mm, hand remote
CE
Fabrication française
French made
Examination couch width 700mm, hand remote
Examination couch width 700mm, hand remote

Couch suggested with wheels RL-125, also available on skids or wheels diam 150mm with brakes

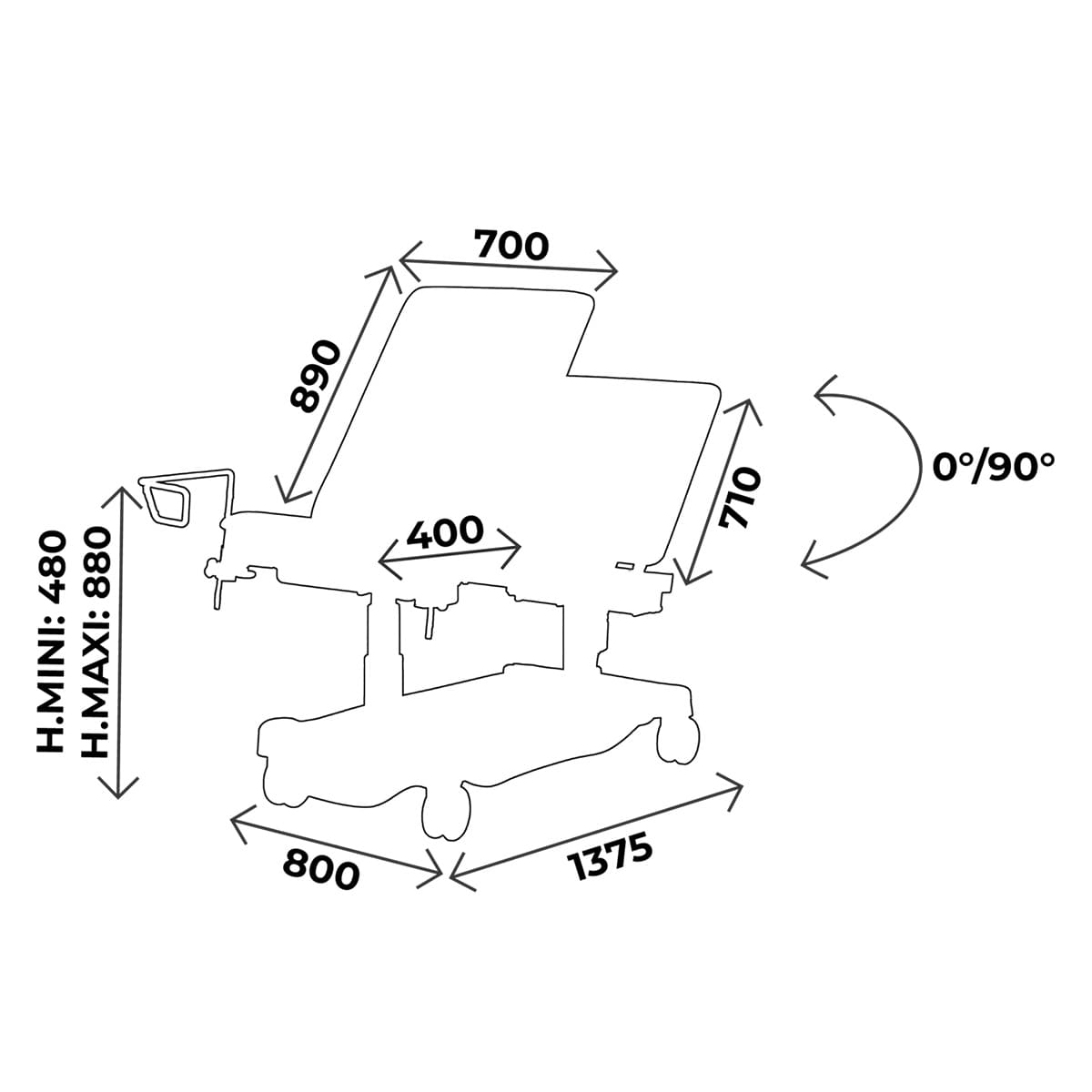

Product Features

Height (cm)
Adjustable electrically from 48 to 88cm
Type of control
Multifunction hand remote
Width
70cm
Upholstery's thickness
5cm
Coating
Fire retardant M1 class
Load capacity
200kg
Accessories include in standard
Stirrups, stainless steel draweer, paper roll holder on the head side and under the middle backrest, wheels diam 125mm with brakes
Height
Electric height adjustment
Control
Hand remote
Number of sections
3 mixed sections (with middle backrest)

Related accessories

Customize and adapt your medical furniture further to your needs
Pair of stainless steel rails 25x10 length 780mm for OVALIA 3 sections.
Pair of stainless steel rails 25x10 length 780mm for OVALIA 3 sections.
ACC-OVALIA04

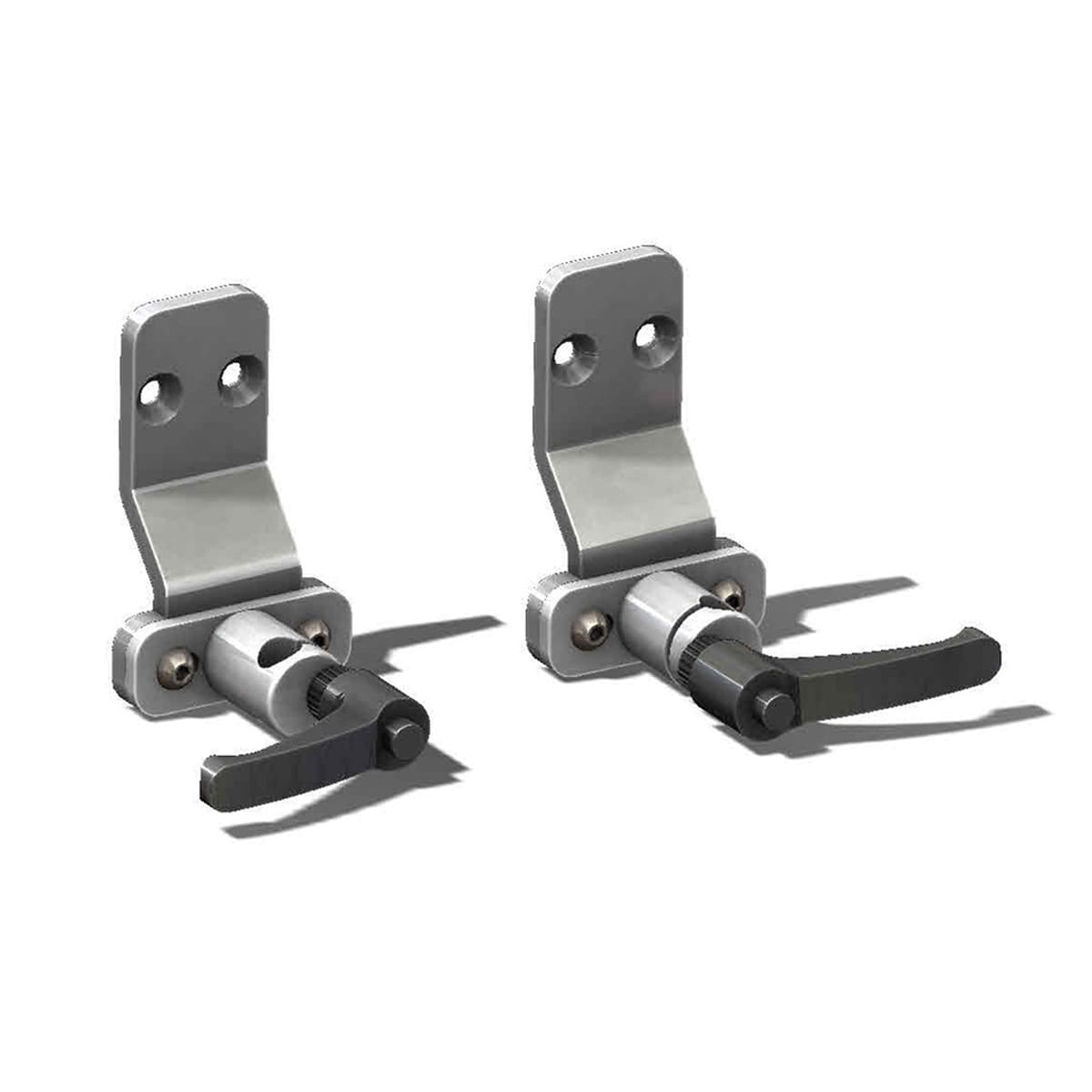

Pair of clamps for couches width 70cm
Pair of clamps for couches width 70cm
ACC 76-OVALIA-70
Blood test splint in colour without clamp, the unit
Blood test splint in colour without clamp, the unit
ACC 110
Polyurethane blood test splint without clamp, the unit
Polyurethane blood test splint without clamp, the unit
ACC 110POLY
Pair of legrests on knee system in black polyurethane diam. 14mm, without clamp
Pair of legrests on knee system in black polyurethane diam. 14mm, without clamp
ACC 964
Stainless steel infusion stand diam. 16mm, 2 plastic hooks, without clamp
Stainless steel infusion stand diam. 16mm, 2 plastic hooks, without clamp
ACC 32012
Stainless steel infusion stand diam. 16mm, 2 stainless steel hooks, without clamp
Stainless steel infusion stand diam. 16mm, 2 stainless steel hooks, without clamp
ACC 32014
Half moon head rest width 70cm fire retardant M1 class
Half moon head rest width 70cm fire retardant M1 class
ACC 54002

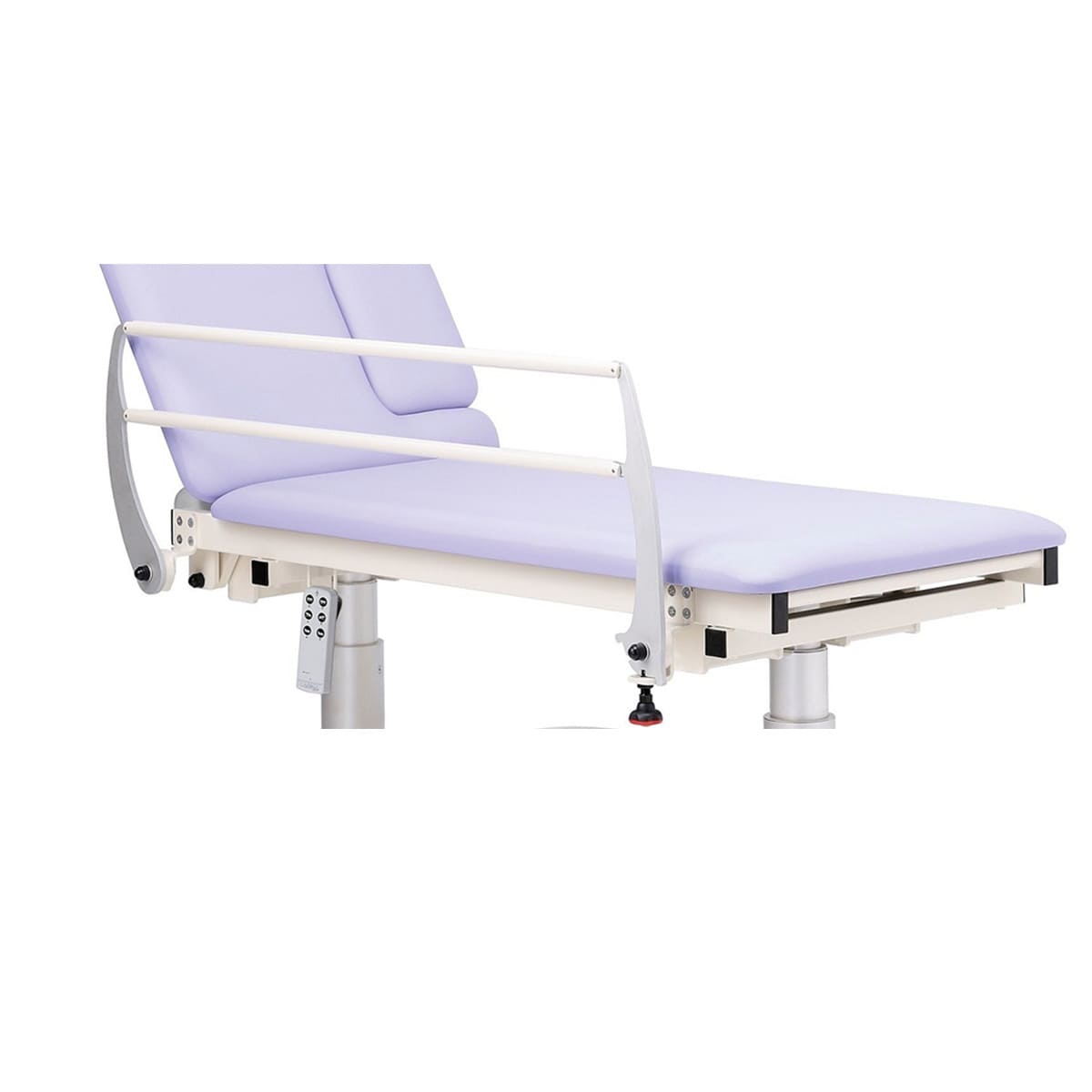

Pair of retractable security side rails for coucheses width 70cm
Pair of retractable security side rails for coucheses width 70cm
ACC BARRILITOV02
Battery, capacity 20 cycles (1 cycle = 1x height's up/ down + 1x backrest's up/ down)
Battery, capacity 20 cycles (1 cycle = 1x height's up/ down + 1x backrest's up/ down)
ACC BATTERIE01
Base colour in a different colour than the standard light grey available in different colours
Base colour in a different colour than the standard light grey available in different colours
ACC-CAPOT

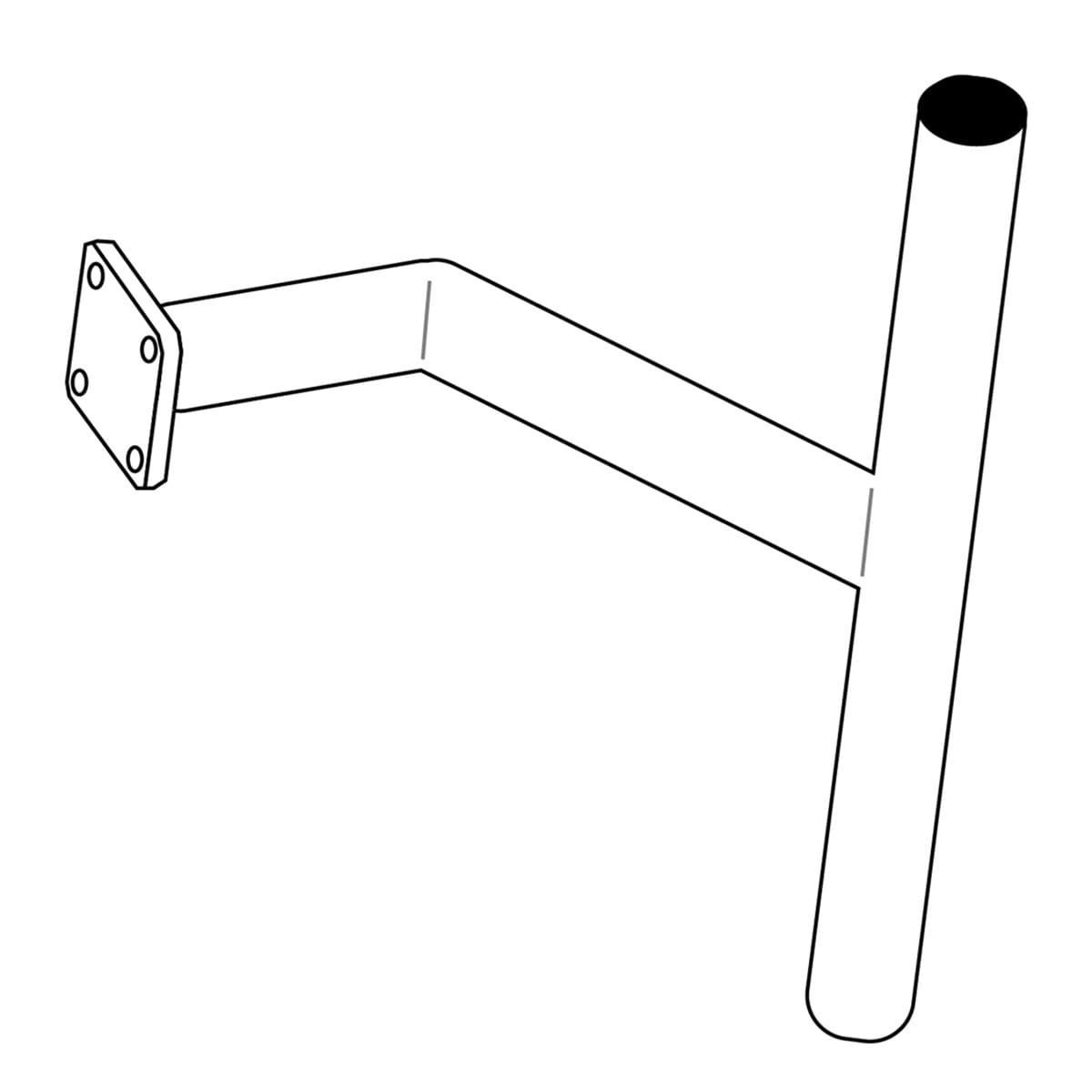

Coloscope holder
Coloscope holder
ACC FEMINA01
4 skids instead of wheels
4 skids instead of wheels
ACC-FIXE

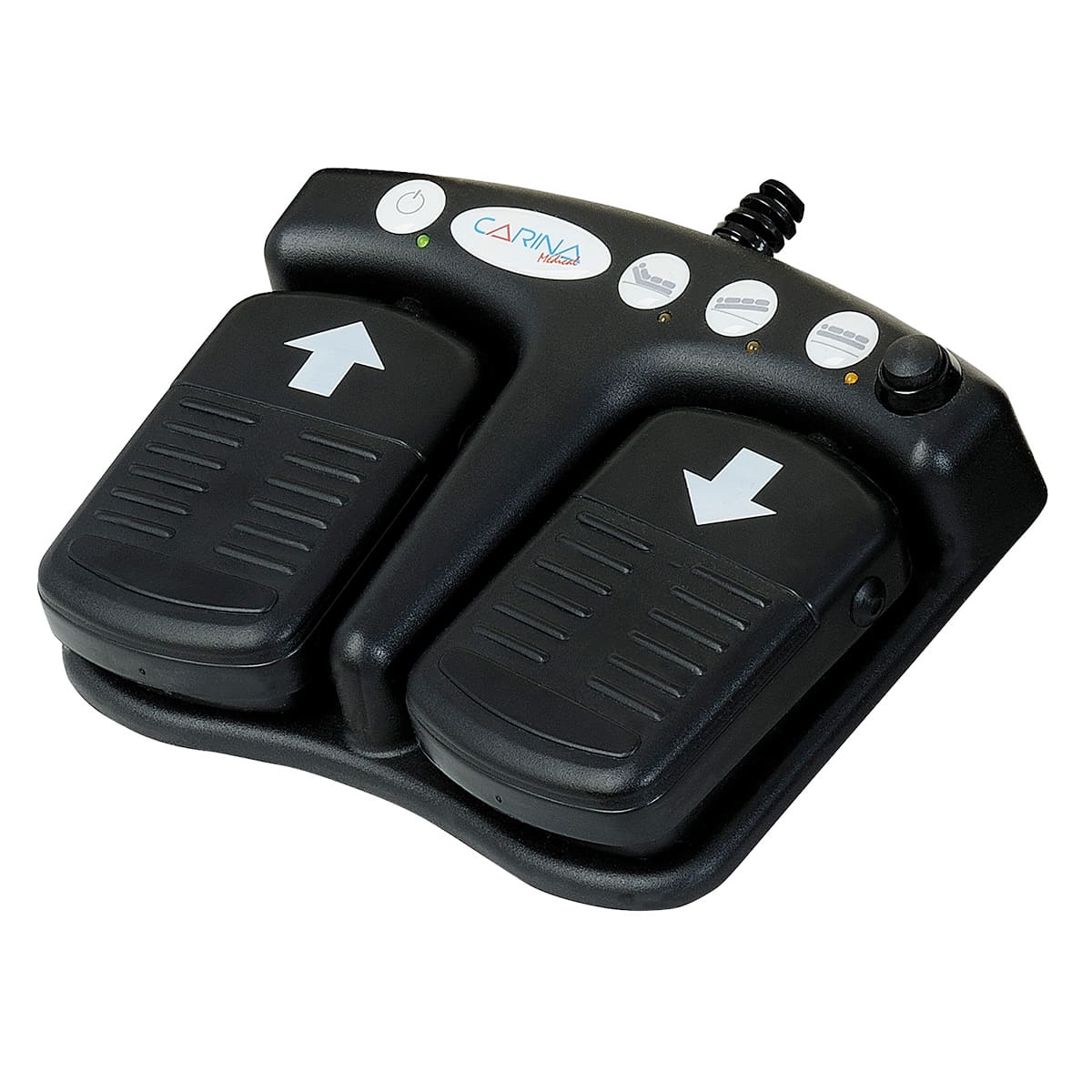

OVALIA/ FEMINA pedal
OVALIA/ FEMINA pedal
ACC-OVALIA03
Pedal for OVALIA + connecting cable for double control
Pedal for OVALIA + connecting cable for double control
ACC-OVALIA05

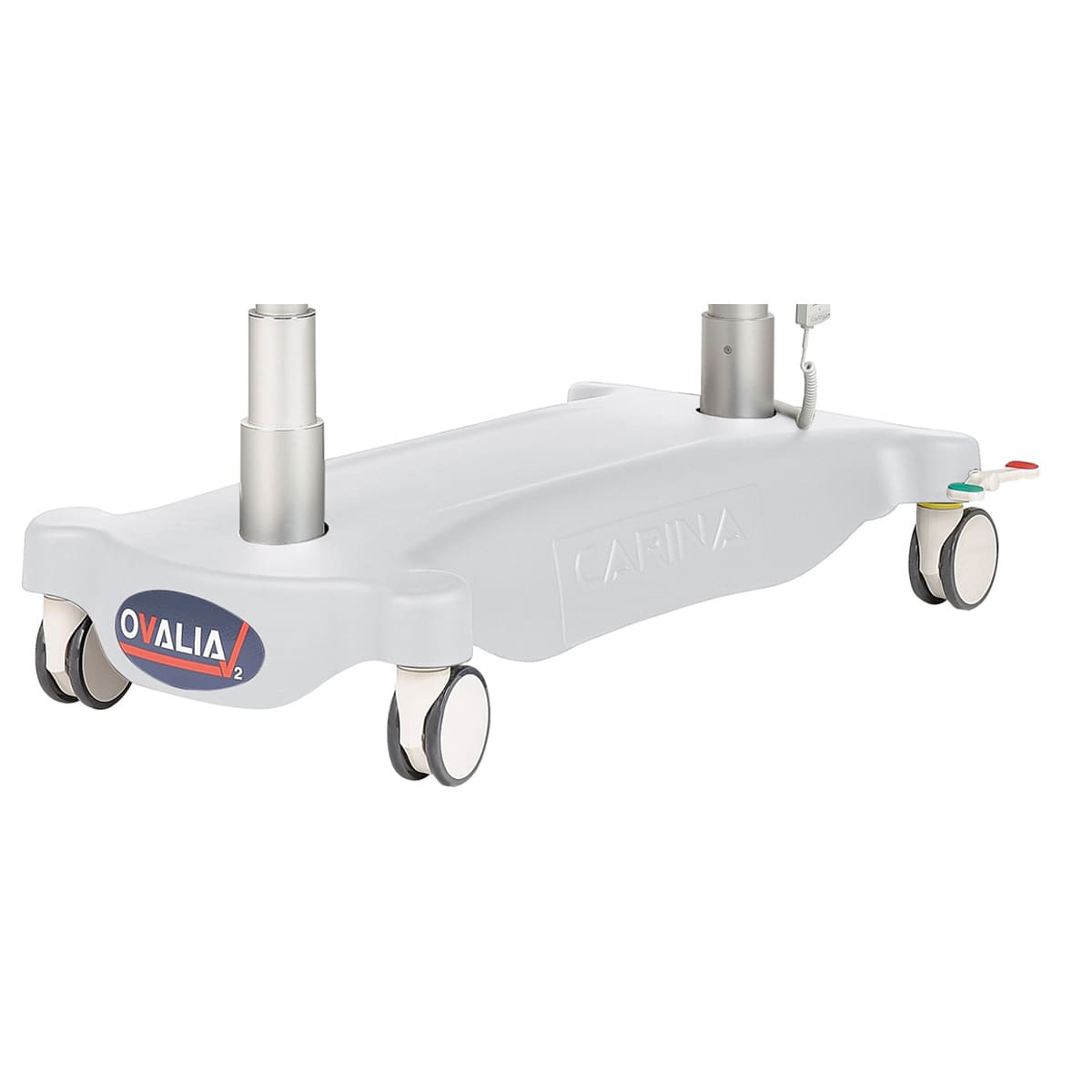

4 wheels diam. 150mm with central brake system
4 wheels diam. 150mm with central brake system
RL-150
Cover for legrests (ACC964) in upholstery, the unit
Cover for legrests (ACC964) in upholstery, the unit
SLFEMIREPOSE
